Tri-M Standard Power

Reliable Embedded DC-DC Power Supplies

High-efficiency, compact modules for defence, industrial, and transportation platforms - built for simplicity and performance in the harshest environments.

Products

Standard Power modules

Reliable, high-efficiency embedded DC-DC power supplies designed for rugged environments. Built for simplicity and performance, these compact modules provide consistent power delivery in defence, industrial and transportation platforms where performance matters — and simplicity is an advantage.

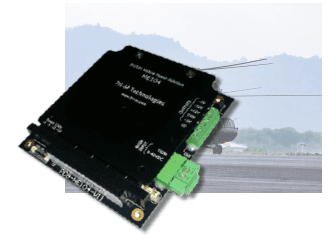

  • Tri-M HE104 power supply board

    HE104 — 60W Rugged PC/104 Power Supply

    Used for data acquisition and sensors.

    • High-efficiency, high-performance +5V, +12VDC output (optional +5V, -12V)
    • Specifically designed for vehicular applications requiring low noise
    • 3-stage active transient surge stopper suppression on input
    • Reverse polarity protected
    • Designed to MIL-STD-810G, 1275D
    • 25+ years field-proven over several versions

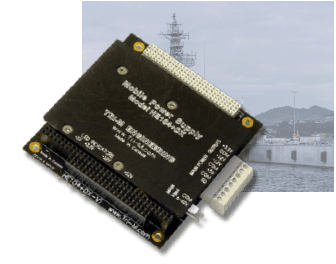

  • Tri-M HE104+DX power supply board

    HE104+DX

    Used for naval monitoring and avionic life support systems.

    • 108W PC/104+ power supply: +3.3V, +5V, +12V, -12V
    • 6V–40V input
    • Designed to MIL-STD-810G, 1275D
    • Designed for low-noise embedded systems
    • 9000W transient suppression (both main & secondary inputs)
    • High efficiency up to 90%
  • Tri-M HDTS-1275 heavy duty transient stopper

    HDTS-1275 — Heavy Duty Transient Stopper

    Protects downstream electronics in military vehicle environments.

    • Protection for transients, load dumps and reverse-connected power
    • DB9 connectors for easy integration into existing systems
    • Pluggable header with screw-lock flanges
    • Transient fault mode indicator
    • Designed to MIL-STD-810G, 1275D
    • Extended temperature
Applications

Field-proven across defence, rail, and aerospace

Standard Power modules are deployed in vehicular data acquisition systems, naval environmental monitoring, avionic life support equipment, and rail control platforms.

Their compact form factor and PC/104 compatibility make them a reliable choice for integrators building rugged embedded systems across transport and defence sectors.

Need a Standard Power module?

ABC Tech is the authorised UK, Germany, and Romania distributor for Tri-M Technologies.

Get in Touch
